Product Detail
xFITMENT & COMPATIBILITY
-
1955-1959 GMC F350
-
1955-1959 GMC F370
-
1955-1959 GMCFM340
-
1955-1959 GMC FM350
-
1955-1959 GMC M300
-
1955-1956 GMCM340
-
1955-1959 GMC PM150
-
1955-1959 GMC PM151
-
1955-1959 GMC PM152
-
1955-1959 GMC PM153
-
1955-1959 GMC PM250
-
1956-1959 GMC PM251
-
1955-1958 GMC PM252
-
1955-1958 GMC PM253
-
1955-1959 GMC S300
-
1955-1959 GMC S370
-
1955-1959 GMC Truck
-
1959 Chevy 3A
-
1959 Chevy 3B
-
1959 Chevy 3C
-
1959 Chevy 3D
-
1959 Chevy 3E
-
1959 Chevy 3F
-
1959 Chevy 3G
-
1955-1958 Chevy Truck
-
1955-1959 GMC 100
-
1955 GMC 100-22
-
1955-1959 GMC 150
-
1955 GMC 150-22
-
1955-1959 GMC 250
-
1955 GMC 250-22
-
1955 GMC 280-22
-
1955-1959 GMC 300
-
1955-1959 GMC350-8
-
1955-1959GMC370
KEY FEATURE
-

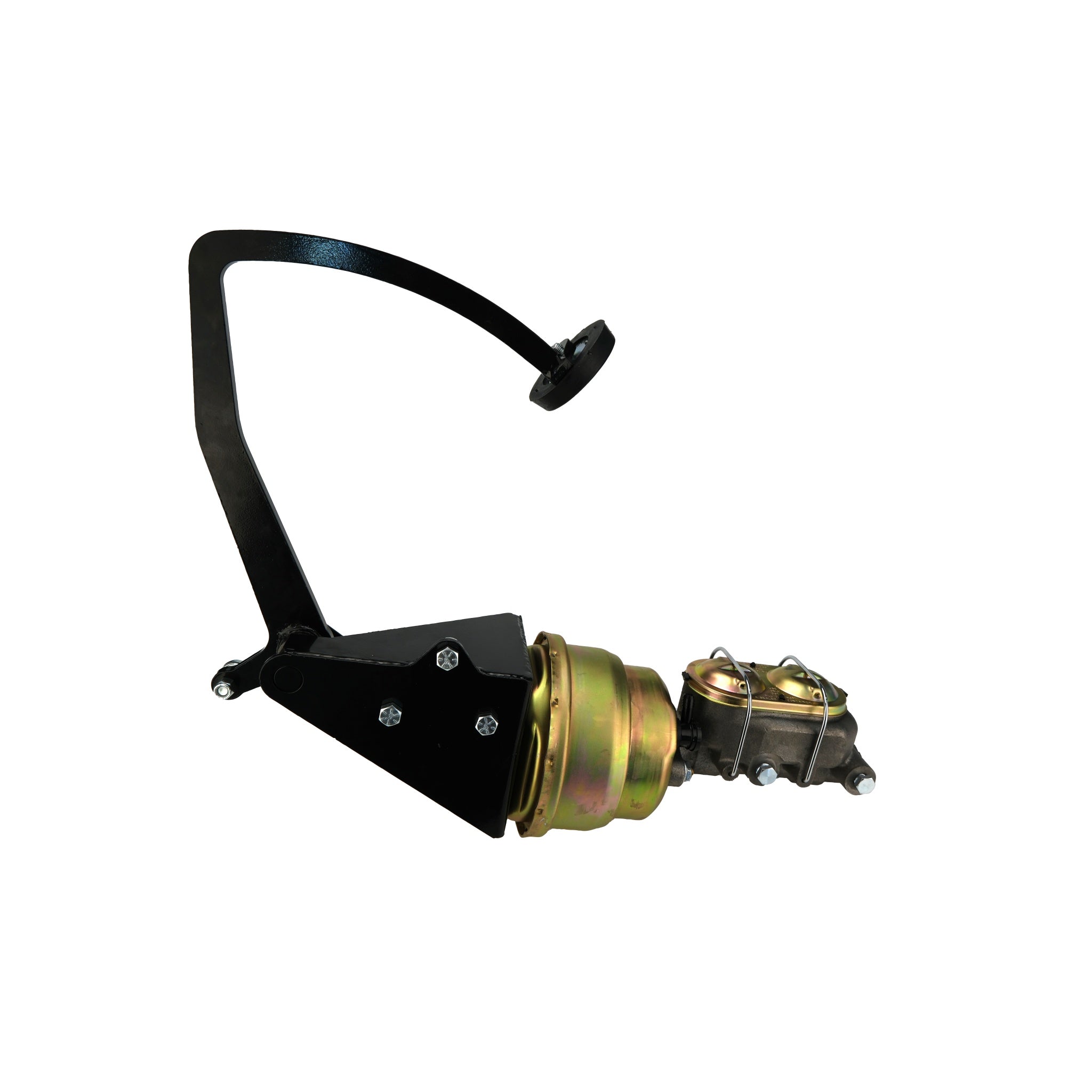

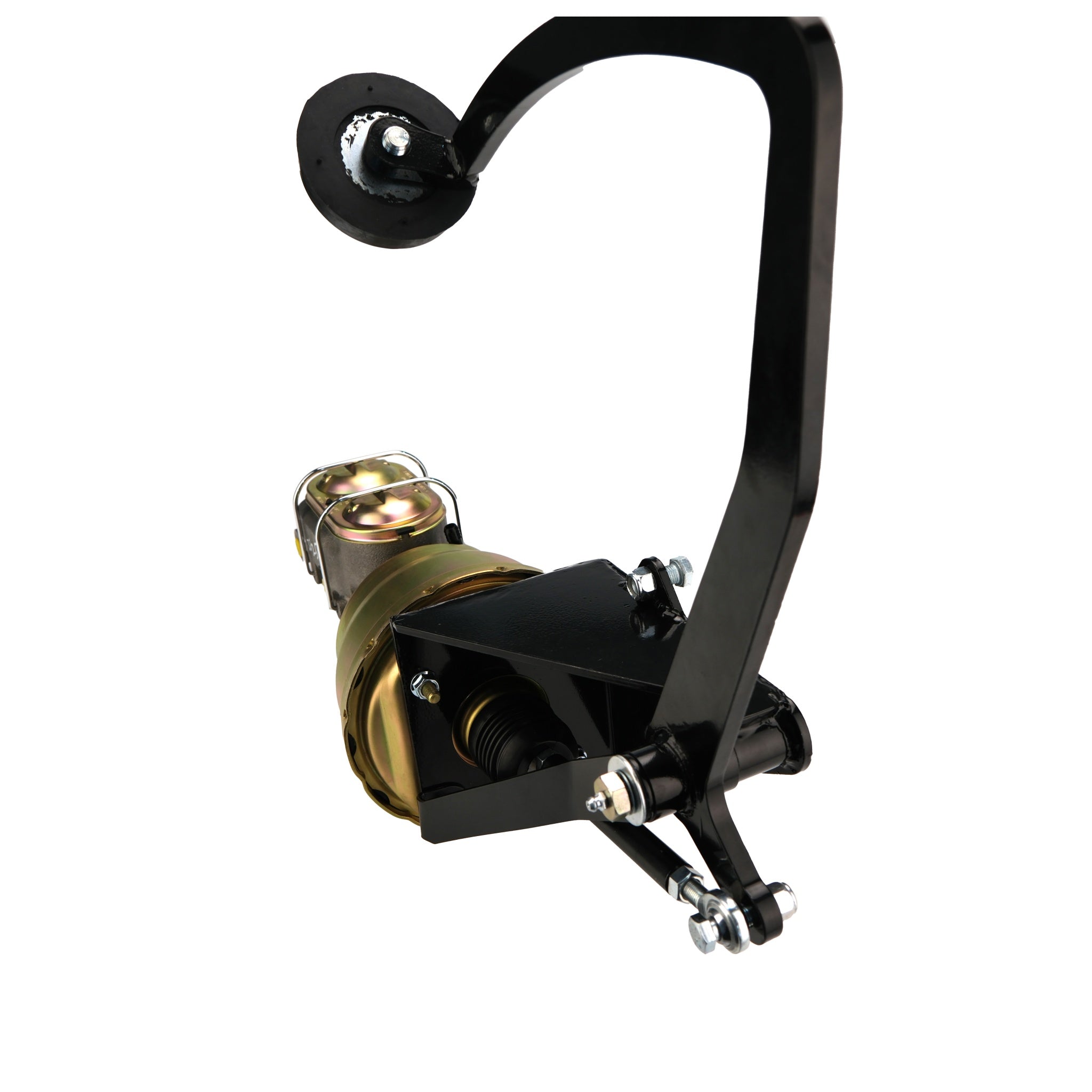

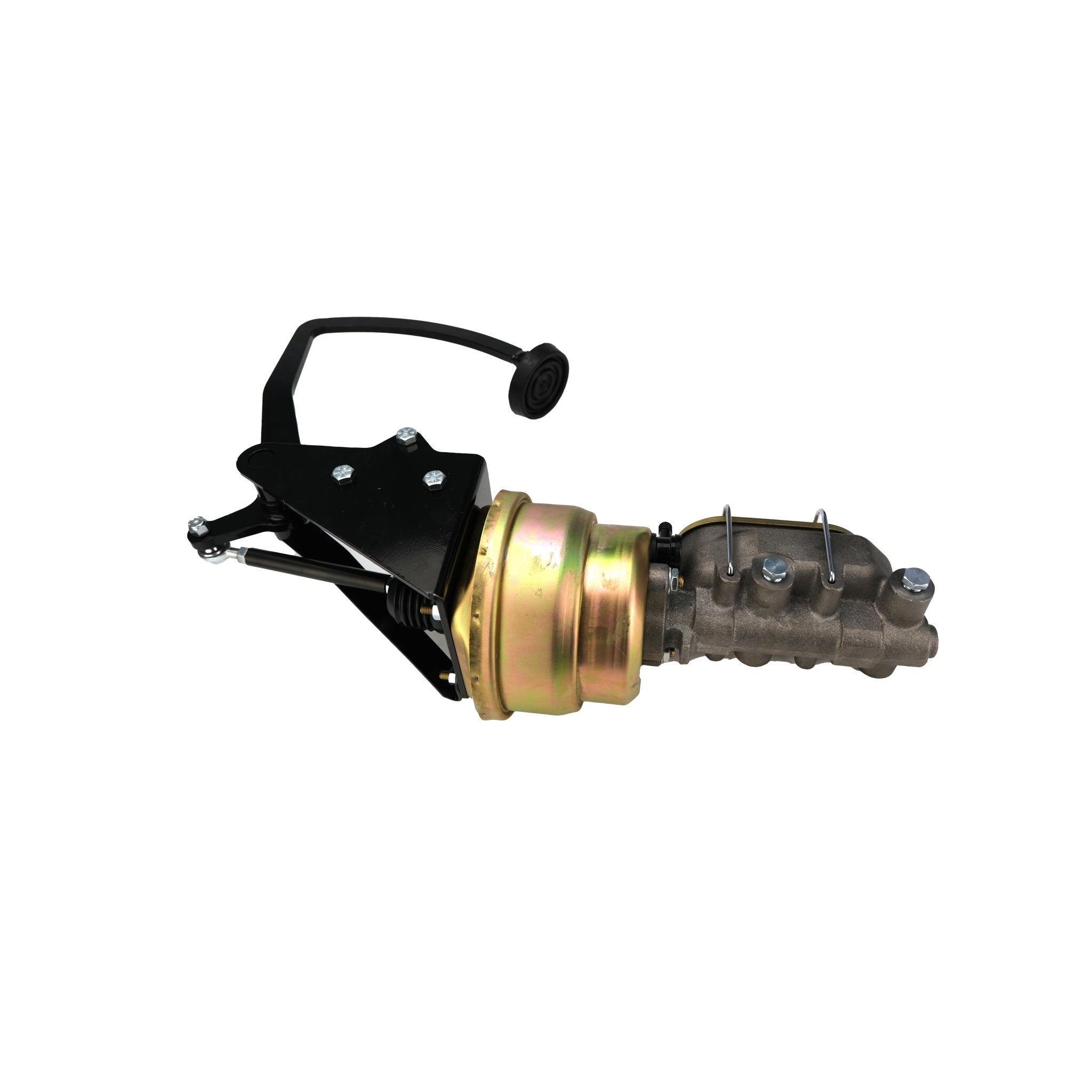

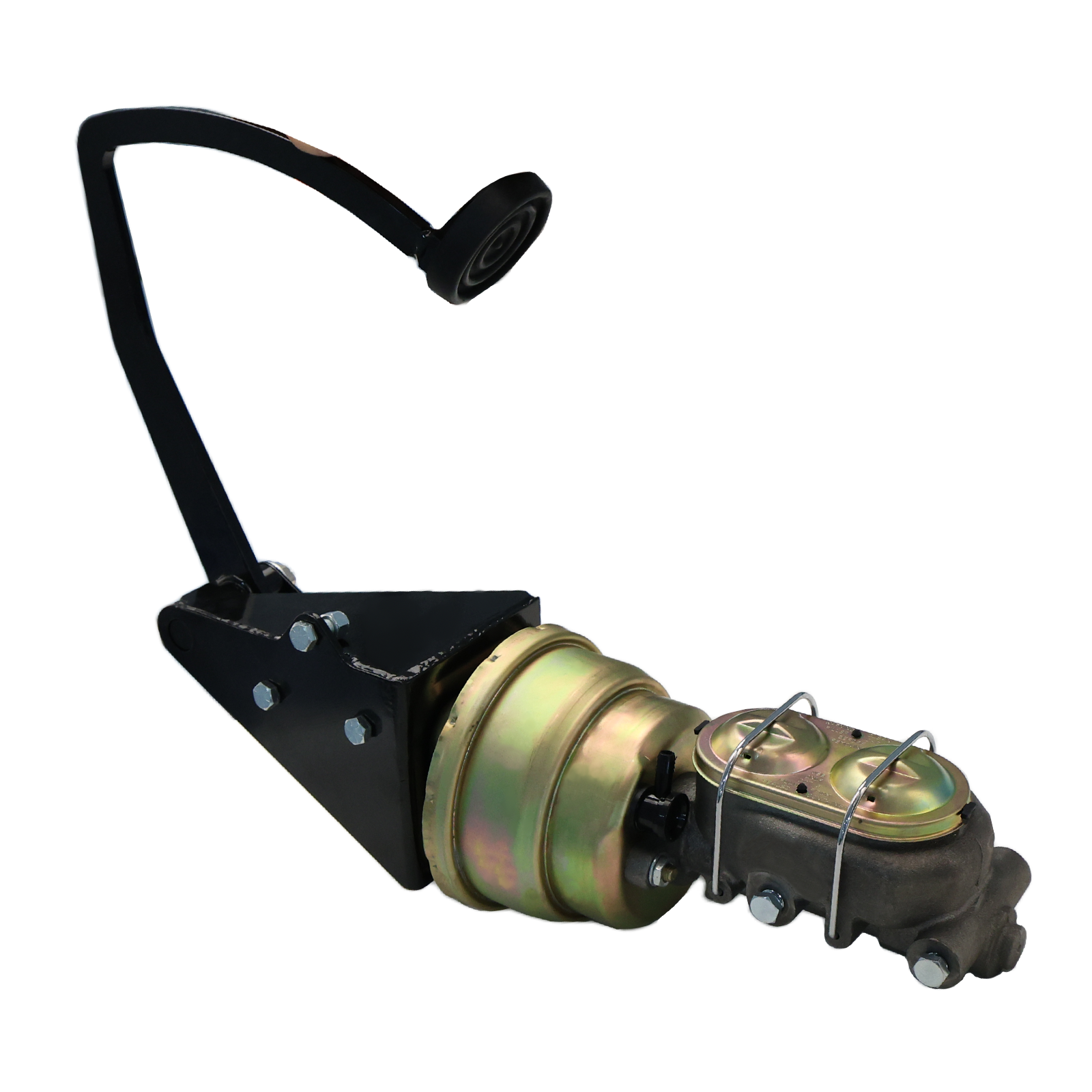

Frame under-floor rail mount unit for 1955–1959 Chevy trucks, only compatible with automatic transmissions.
-
Equipped with 7-inch dual vacuum diaphragm power brake booster.
-
Reverse-mount cast iron tandem master cylinder with dual bail GM-style design.
-
Master cylinder fitted with 1/2"-20 & 9/16"-18 IFF threaded outlets and integral reservoir.
-
Complete black powder coated brake pedal assembly including rubber pedal pad.
-
Direct bolt-on frame rail installation design for straightforward retrofitting.
-
All-in-one conversion kit; residual pressure valves required for frame-mounted installation.

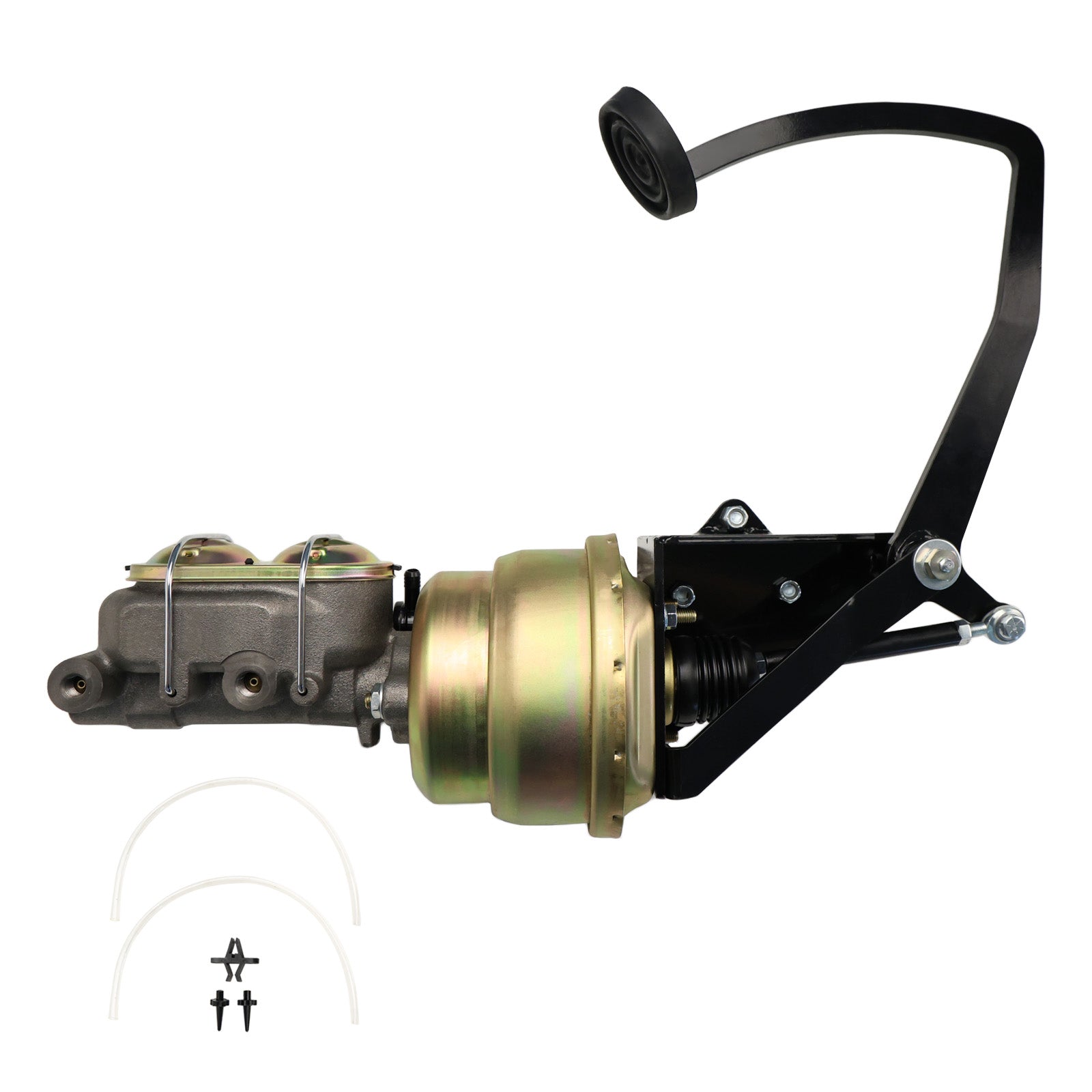

KIT CONTAINS
-
1" Bore Cast Iron Master Cylinder With 1/2"-20 & 9/16"-18 Outlets
-
7" Dual Diaphragm Booster
-
Powder Coated Black Pedal Assembly & Pedal Pad
-
Master Cylinder Bench Bleeder Kit
MATERIAL & CONSTURCTION
-
Brake System: Disc/Drum
-
Booster Diameter: 7''
-
Booster type: Vacuum Dual Diaphragm
-
Booster Vacuum Test: Yes
-
Booster Material: Steel
-
Booster Finish: Zinc
-
Master Cylinder Bore Size: 1''
-
Outlet Fitting: 1/2"-20 IFF
-
Outlet Fitting 2: 9/16"-18 IFF
-
Master Cylinder Material: Cast Iron
-
Master Cylinder Finish: Raw
-
Outlet Count: Tandem
WARRANTY & SERVICE
-
Warranty: 6 Month Limited
